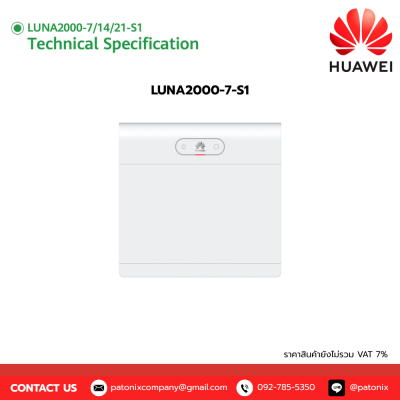

HUAWEI LUNA2000-7-S1
SKU : HW-LN2000-7
The LUNA2000-7-S1 is Huawei’s smart energy storage battery system with a capacity of 6.9 kWh and max charge/discharge power of 3.5 kW. Designed for safety, quiet operation, and sleek appearance, it’s ideal for home and small business use. It supports expansion up to 3 modules and performs reliably in temperatures from -20°C to +55°C.
฿0
฿0
Member
฿0
Member
฿0
Quantity
Product description
Datasheet
Product Description LUNA2000-7-S1
Special Features
Scalability: Up to 4 systems can operate in parallel
Multi-level Protection: Active and emergency protection mechanisms
Low Noise Operation: <29dB for silent performance
Installation Guidance
Outdoor installation recommended (indoor allowed with user manual instructions)
Supports operation at altitudes up to 4,000m (13,123ft)
- Battery Module: LUNA2000-7-E1 with a capacity of 6.9kWh per module
- Number of Battery Modules: 1 module (expandable up to 3 modules for a total of 20.7kWh)
- Operating Voltage Range:
- 350-560V (for single-phase systems)
- 600-980V (for three-phase systems)
- Weight: 68kg per battery module
- Module Dimensions (W × D × H): 590mm × 255mm × 360mm
- Installation: Wall-mounted (optional accessory)
- Operating Temperature: 20°C to +55°C (optimized for performance in various climates)
- Protection: IP66 protection rating with natural convection cooling
- Communication: RS485 / FE / CAN communication interfaces
- Certifications: CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS
Special Features
Scalability: Up to 4 systems can operate in parallel
Multi-level Protection: Active and emergency protection mechanisms
Low Noise Operation: <29dB for silent performance
Installation Guidance
Outdoor installation recommended (indoor allowed with user manual instructions)
Supports operation at altitudes up to 4,000m (13,123ft)
