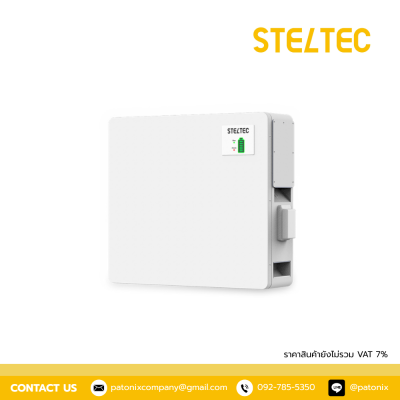

STELTEC FLEX L1 BATTERY
SKU : ST-F-L1
0 Sold
฿0
Quantity
Short Description
The Flex-L1 energy storage battery offers a flexible investment with expandable capacity ranging from 5.22kWh to 41.76kWh. This lithium-ion (LFP) battery is designed for safety, reliability, and ease of installation. With a 10-year product warranty, it ensures long-term performance and peace of mind. The built-in intelligent Battery Management System (BMS) provides 24/7 monitoring to optimize battery operation.
Wishlist
Compare
Product description
Datasheet
- Battery Type: Li-ion (LFP)
- Nominal Capacity: 5.22 kWh
- Nominal Voltage: 51.2V
- Operating Voltage Range: 45.6 ~ 56.2V
- Installation: Wall-mounted only
- Battery Life: 10 years
- Scalability: Up to 15 systems in parallel operation
- Cooling: Natural convection
- Communication Ports: RS232, RS485, CAN
- Protection Class: IP54
- Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
- Shelf Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Humidity: 5% - 95%
- Max. Operating Altitude: 2,000m (6,562ft.)
Additional Information
Certification: IEC62619, IEC61000, IEC62040, CE, UN38.3
Weight: 48kg (105.82 lb)
Dimensions: 520 x 141.5 x 470 mm (20.47 x 5.57 x 18.5 inches)
