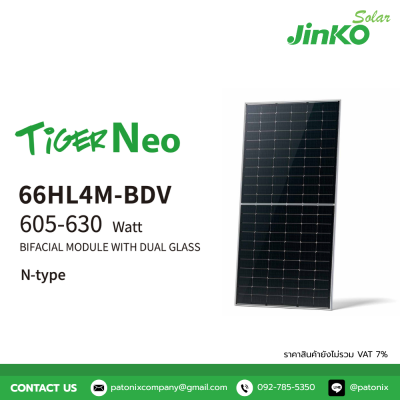

Jinko Tiger Neo 66HL4M-BDV 605-630W N-Type

• N-type Cell Technology: Offers lower degradation and higher efficiency compared to P-type.
• HOT 2.0 Technology: Enhances overall performance and long-term reliability.
• TOPCon (Tunnel Oxide Passivating Contact): Minimizes LID and LeTID effects, improves low-light performance.
• SMBB (Multi Busbar) Technology: Improves light capture and current collection.
• Anti-PID Guarantee: Ensures resistance to potential-induced degradation through optimized materials.

• Cell Type: N-type Monocrystalline
• No. of Cells: 132 (66×2)
• Module Dimensions: 2382 × 1134 × 35 mm
• Weight: 28.2 kg
• Glass: 3.2 mm, AR Coated, High Transmission, Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 Rated
• Fire Rating: IEC Class C
• Cables: 4.0 mm², Length: (+) 400 mm, () 200 mm (or customized)

️Environmental Ratings

• Operating Temperature Range: -40°C to +85°C
• Nominal Operating Cell Temp (NOCT): 45±2°C
• Max System Voltage: 1000 / 1500 VDC (IEC)
• Max Series Fuse Rating: 30 A

• 31 pcs/pallet, 620 pcs/40HQ container
• Pallet Dimensions: 2396 × 1110 × 1251 mm

️Certifications & Durability

• Standards: IEC61215:2016 / IEC61730:2016, IEC61701, IEC62716, IEC60068, IEC62804
• ISO Certifications: ISO9001 (Quality), ISO14001 (Environmental), ISO45001 (OHS)
• Resistant to: Salt mist and ammonia
• Mechanical Load: 5400 Pa (front), 2400 Pa (rear)

• Product Warranty: 12 years
• Power Output Warranty: 30 years
• Performance Guarantee: 87.4% of original output after 30 years
• (First-year degradation <1%, then 0.4% per year)
